M3 Hexagon Socket Key Angle adjustment for 45° + 90° mandrels Manual

M4x10 Hexagon Socket Angle adjustment for: 45° + 90° mandrels Manual

Rulers For measuring the distance between the fi ttings you want to join. You can also connect the rulers to one another or mount them to bending plate to carry over measurement results. Manual

Screw Clamps For mounting the mitre box directly onto a table. Manual

Fitting Stopper Stopper with set insertion depth6 mm for tubes with 13 or 12 mm Ø11 mm for tubes with 16 mm Ø Depth is shown with a markingThe insertion depth is based on the connection depth for Alphacool Hard-Tube connectors, so this measurement does not need to be added when calculating dimensions. If you are not using Alphacool connectors, use the straight mandrel with stylus stopper or calculate the difference using your connectors. All bending mandrels and stoppers are designed for tube diameters of 12 or 13 mm and 16 mm. The necessary guidance is always aligned downwards. Manual

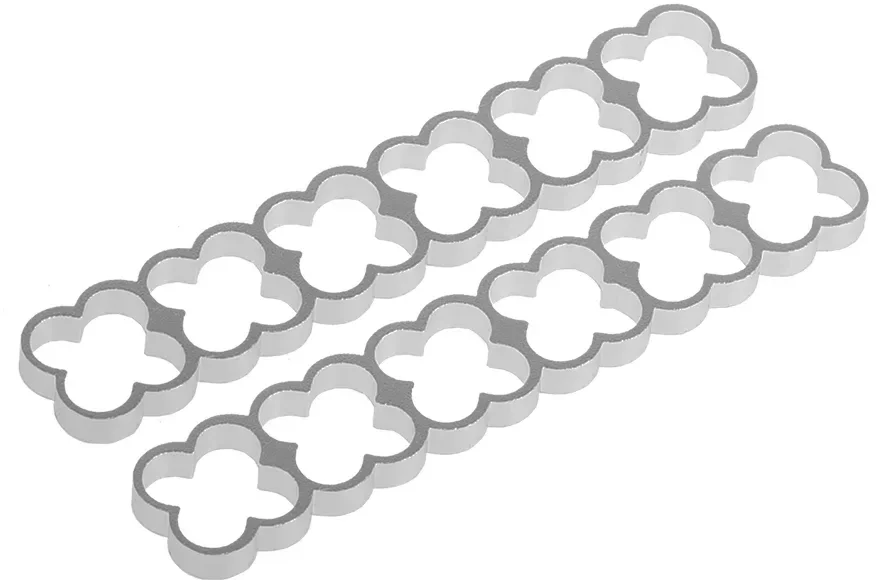

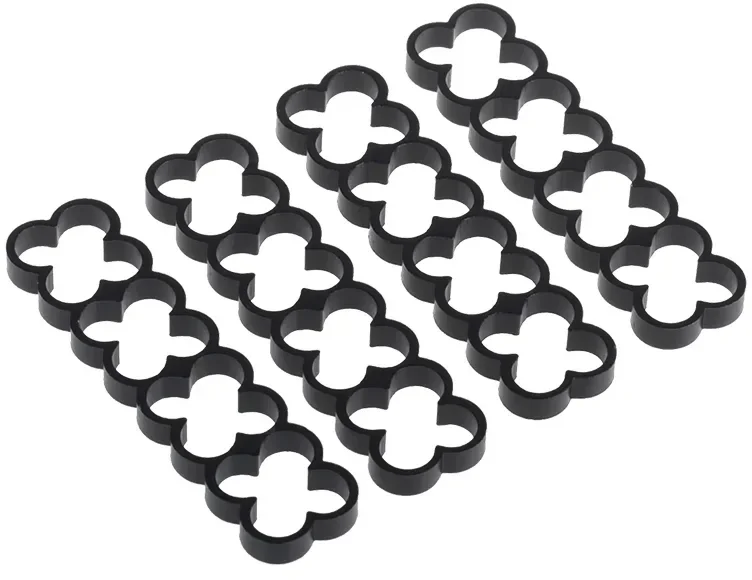

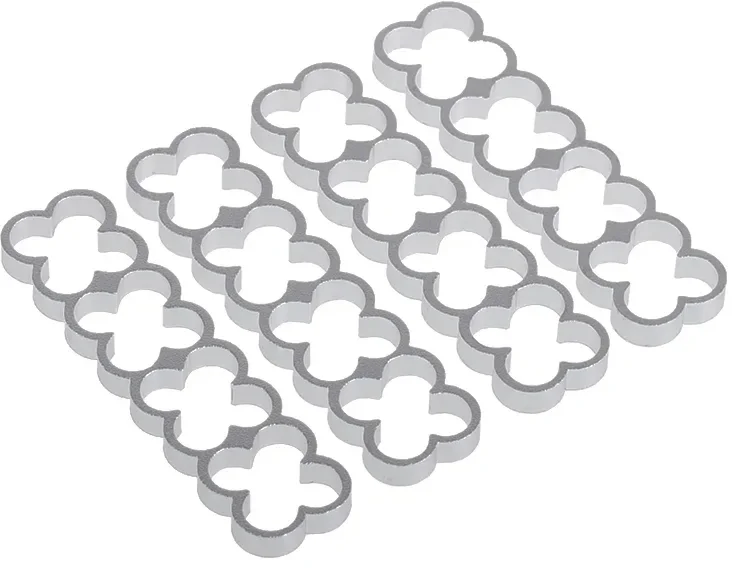

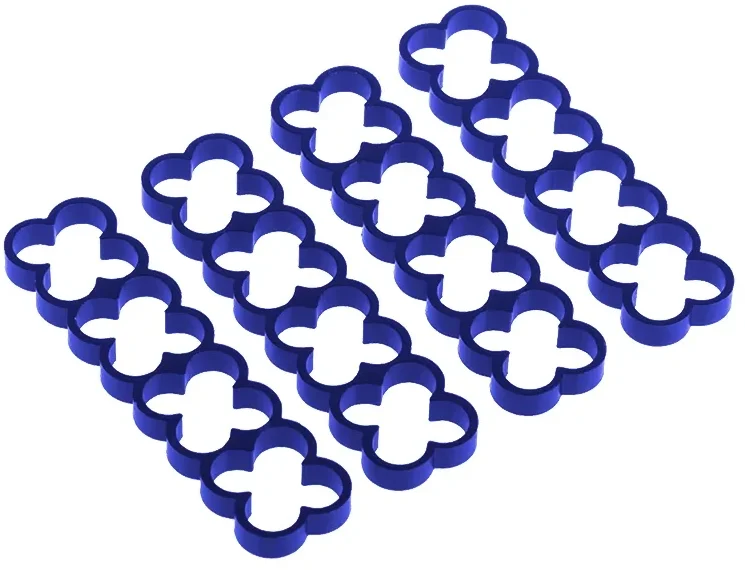

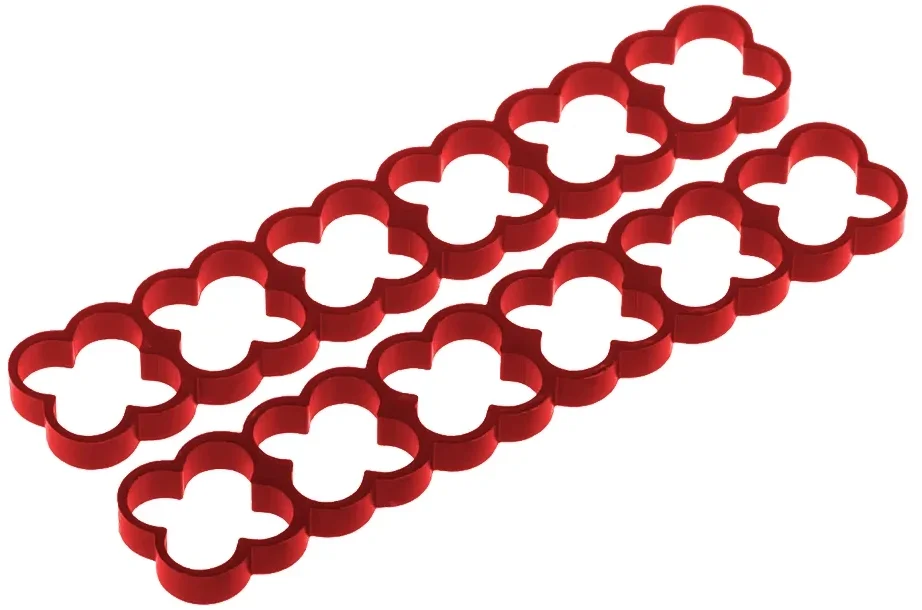

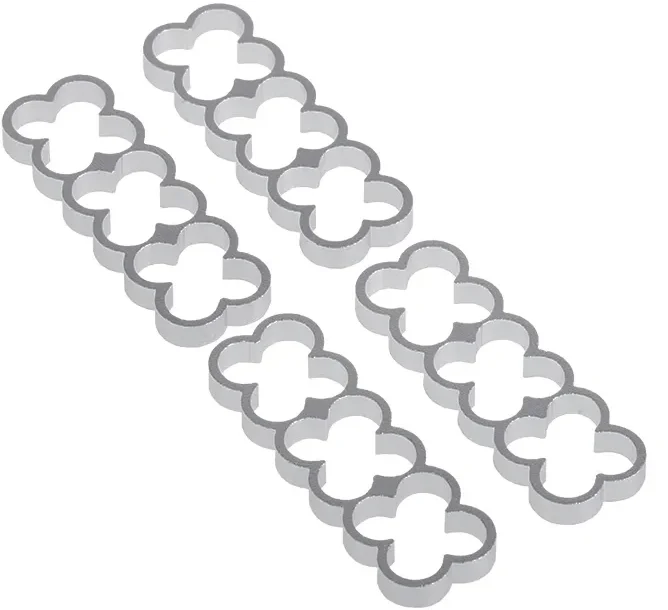

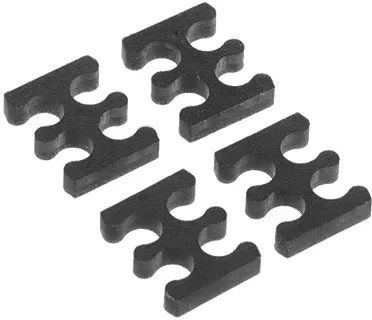

What is it?The Alphacool Eiskamm is the perfect cable comb for laying cables neatly and getting the best look for your system. Highlights Nylon is flexible and won't break Simple installation, no rebuilding required Clean, simple cable organisation The Alphacool Eiskamm is the simplest solution for getting your cable bundles in order. With the outside-opening Eiskamm cable combs, you can smoothly and easily press cables into the combs and lay them neatly. There's no easier way to get your cables into their proper positions. Since they're made of nylon instead of acrylic, the Eiskamm combs are extremely flexible and won't break in any type of normal usage. Technical Specifications Material: Nylon Version: X14 Flat Dimensions: 30.5 x 8 x 2mm Colour: Clear Scope of Delivery Alphacool Eiskamm X14 Flat - 3mm clear - 4 pieces Datasheet Installation Instructions

What is it?The Alphacool Eiskamm is the perfect cable comb for laying cables neatly and getting the best look for your system. Highlights Nylon is flexible and won't break Simple installation, no rebuilding required Clean, simple cable organisation The Alphacool Eiskamm is the simplest solution for getting your cable bundles in order. With the outside-opening Eiskamm cable combs, you can smoothly and easily press cables into the combs and lay them neatly. There's no easier way to get your cables into their proper positions. Since they're made of nylon instead of acrylic, the Eiskamm combs are extremely flexible and won't break in any type of normal usage. Technical Specifications Material: Nylon Version: X16 Flat Dimensions: 34.5 x 8 x 2mm Colour: Black Scope of Delivery Alphacool Eiskamm X16 Flat - 3mm black - 4 pieces Datasheet Installation Instructions

What is it?The Alphacool Eiskamm is the perfect cable comb for laying cables neatly and getting the best look for your system. Highlights Nylon is flexible and won't break Simple installation, no rebuilding required Clean, simple cable organisation The Alphacool Eiskamm is the simplest solution for getting your cable bundles in order. With the outside-opening Eiskamm cable combs, you can smoothly and easily press cables into the combs and lay them neatly. There's no easier way to get your cables into their proper positions. Since they're made of nylon instead of acrylic, the Eiskamm combs are extremely flexible and won't break in any type of normal usage. Technical Specifications Material: Nylon Version: X24 Flat Dimensions: 51.5 x 8 x 2mm Colour: Black Scope of Delivery Alphacool Eiskamm X24 Flat - 3mm black - 2 pieces Datasheet Installation Instructions

What is it?The Alphacool Eiskamm is the perfect cable comb for laying cables neatly and getting the best look for your system. Highlights Nylon is flexible and won't break Simple installation, no rebuilding required Clean, simple cable organisation The Alphacool Eiskamm is the simplest solution for getting your cable bundles in order. With the outside-opening Eiskamm cable combs, you can smoothly and easily press cables into the combs and lay them neatly. There's no easier way to get your cables into their proper positions. Since they're made of nylon instead of acrylic, the Eiskamm combs are extremely flexible and won't break in any type of normal usage. Technical Specifications Material: Nylon Version: X24 Flat Dimensions: 51.5 x 8 x 2mm Colour: Clear Scope of Delivery Alphacool Eiskamm X24 Flat - 3mm clear - 2 pieces Datasheet Installation Instructions

What is it?The Alphacool Eiskamm is the perfect cable comb for laying cables neatly and getting the best look for your system. Highlights Nylon is flexible and won't break Simple installation, no rebuilding required Clean, simple cable organisation The Alphacool Eiskamm is the simplest solution for getting your cable bundles in order. With the outside-opening Eiskamm cable combs, you can smoothly and easily press cables into the combs and lay them neatly. There's no easier way to get your cables into their proper positions. Since they're made of nylon instead of acrylic, the Eiskamm combs are extremely flexible and won't break in any type of normal usage. Technical Specifications Material: Nylon Version: X6 Flat Dimensions: 14 x 8 x 2mm Colour: Black Scope of Delivery Alphacool Eiskamm X6 Flat - 3mm black - 4 pieces Datasheet Installation Instructions

What is it?The Alphacool Eiskamm is the perfect cable comb for laying cables neatly and getting the best look for your system. Highlights Nylon is flexible and won't break Simple installation, no rebuilding required Clean, simple cable organisation The Alphacool Eiskamm is the simplest solution for getting your cable bundles in order. With the outside-opening Eiskamm cable combs, you can smoothly and easily press cables into the combs and lay them neatly. There's no easier way to get your cables into their proper positions. Since they're made of nylon instead of acrylic, the Eiskamm combs are extremely flexible and won't break in any type of normal usage. Technical Specifications Material: Nylon Version: X6 Flat Dimensions: 14 x 8 x 2mm Colour: Clear Scope of Delivery Alphacool Eiskamm X6 Flat - 3mm clear - 4 pieces Datasheet Installation Instructions

Alphacool’s ultimate solution to cool your computer with a layer of ice. Not frozen water but a sensational new thermal pad: With up to 17 W / mk pads surpass all previously-seen thermal pads and pastes. So now practically all hardware components can be easily and cleanly covered with ice! The "Alphacool Eisschicht" offers all the benefits and features of a typical thermal pads: self-adhesive, elastic, adaptable, and more! It canbe used in many applications: RAM and motherboard coolers or graphics cards and CPU coolers, wherever board meets heatsink you are well advised with the Alphacool Eisschicht. The pads are available in different power levels, 11, 14 and 17W / mk each available in 0.5mm, 1mm and 1.5mm thickness to be able to compensate for differences in height perfectly. Likewise, any thickness is again available in 100x100mm and 120x20mm (suitable for RAM cooler). These can be easily cut with scissors to separate the right size for each component to be individually configured.

Alphacool’s ultimate solution to cool your computer with a layer of ice. Not frozen water but a sensational new thermal pad: With up to 17 W / mk pads surpass all previously-seen thermal pads and pastes. So now practically all hardware components can be easily and cleanly covered with ice! The "Alphacool Eisschicht" offers all the benefits and features of a typical thermal pads: self-adhesive, elastic, adaptable, and more! It canbe used in many applications: RAM and motherboard coolers or graphics cards and CPU coolers, wherever board meets heatsink you are well advised with the Alphacool Eisschicht. The pads are available in different power levels, 11, 14 and 17W / mk each available in 0.5mm, 1mm and 1.5mm thickness to be able to compensate for differences in height perfectly. Likewise, any thickness is again available in 100x100mm and 120x20mm (suitable for RAM cooler). These can be easily cut with scissors to separate the right size for each component to be individually configured.

Alphacool’s ultimate solution to cool your computer with a layer of ice. Not frozen water but a sensational new thermal pad: With up to 17 W / mk pads surpass all previously-seen thermal pads and pastes. So now practically all hardware components can be easily and cleanly covered with ice! The "Alphacool Eisschicht" offers all the benefits and features of a typical thermal pads: self-adhesive, elastic, adaptable, and more! It canbe used in many applications: RAM and motherboard coolers or graphics cards and CPU coolers, wherever board meets heatsink you are well advised with the Alphacool Eisschicht. The pads are available in different power levels, 11, 14 and 17W / mk each available in 0.5mm, 1mm and 1.5mm thickness to be able to compensate for differences in height perfectly. Likewise, any thickness is again available in 100x100mm and 120x20mm (suitable for RAM cooler). These can be easily cut with scissors to separate the right size for each component to be individually configured.

The Alphacool Eisrohr PETG HardTube givse the user the possibility to create a very special look. With a wall thickness of 3 mm, the tubes are very strong, but can still be bent without great effort and they are easy to fit. PETG HardTubes are probably the easiest to bend compared to those made of other materials. They require significantly less heat than PMMA HardTubes, for example. The Alphacool Eisrohr PETG HardTubes are absolutely clear and will look great in almost every water cooling loop. When cutting the tubes, make sure to chamfer the edges with fine file , sandpaper or the Alphacool Strong Guy pipe and hose deburrer, as sharp edges can damage the O-rings of fittings.Technical data:Outer diameter: 12 mmInner diameter: 9 mmLength: 80 cmMaterial: PETG clearNet weight: 50 g Download data sheet PDF: Alphacool Eisrohr 12/9mm PETG HardTube 80cm - 4pcs

Set mit vier transparenten Acrylglas-Röhren von Alphacool, 800-mm Länge, für Anschlüsse mit 13 mm Außen- und 10 mm Innendurchmesser

With Alphacool Eiswasser, water cooling pioneer Alphacool is checking off every modder and enthusiast’s wish list: brilliant colors, cool effects in plexi coolers, tubing, and reservoirs, as well as a long lifespan and material compatibility. The Alphacool Eiswasser Crystal Series has been tested in every possible application both in Alphacool’s lab and by external testers and modders, and was proven to be high-quality and long-lasting. If you’re looking to add some illumination to your PC, the Alphacool Eiswasser Crystal UV is for you. It has excellent UV-reactivity with UV-LEDs or cathodes. Alphacool Eiswasser gives your water cooling system an extra visual highlight with great cooling performance. Note: This cooling liquid does not contain any biocides or anti-corrosion additives. It should also be noted that the loop must be cleaned more frequently when using this colored liquid. The dyes it contains can clog the circuit after a long period of use and impair cooling performance. Alphacool's Eiswasser series is therefore more suitable for use in show cases than in gaming or work PCs. Technical data UV ink: blue Content: 1000ml Specification: Ready mix Color: blue Manufacturer: Alphacool

Sleeved extension cable for JST-3-Pin-ARGB, 30 cm length, with socket and plug.

Sleeved extension cable for JST 3-pin ARGB, 60 cm length, with socket and plug.

Low-Noise-Pumpe von Alphacool und Laing, Schwarzes Messing-Gehäuse (Black Nickel), möglich, 200 l/h und 2,44 m Förderhöhe bei 10 Watt Leistungsaufnahme, Single Edition ohne Aufsatz

Once you have completed building your cooling loop, the last step is usually the filling of the system. Leaks are not uncommon at this stage. Often it is because a HardTube or hose is not seated correctly, or a fitting has not been screwed in completely. With the Alphacool Leak Testing Tool you can ensure there are no leakst before filling the system. StructureThe Leak Testing Tool consists of a hand pump, a pressure indicator, and a 11/8mm hose with a G1/4" threaded connection at the end. The whole thing is connected to each other via a TEE piece. The hose is 40 cm long and has an anti-kink spring. ApplicationYou connect the Alphacool Leak Testing Tool to a free G1/4" port in the system and operate the hand pump until the desired pressure is reached. Please note here that there may be different maximum specifications depending on the hardware manufacturer. Now you should wait about 15 to 20 minutes. If the pressure has not dropped after this time, your cooling loop is airtight and therefore watertight. Technical data:Measuring range: 0 - 1 barConnection: G1/4" threadTube length: 40 cm Download manual: Alphacool Leak Testing ToolDownload data sheet PDF: Alphacool Leak Testing Tool

The Low Profile ES L-connector from Alphacool's ENTERPRISE SOLUTIONS series with 1 G1/4" male thread and 1 G1/4" female thread offers the possibility to connect components like GPU and CPU coolers, reservoirs or radiators into a water circuit even in the tightest server case.UseThe Low Profile ES L-connector can be rotated 360°. Compared to Alphacool's conventional L-connectors, rotation is not made possible by turning the connector itself, but by a recessed, freely rotatable plug with a screw slot on the threaded opposite side of the connector. With the help of a screwdriver or the plug-in tool from Alphacool, the integration of water cooling elements is simplified, as the connector itself no longer needs to be rotated. The positioning of the connector is done using the adjustment options on the plug itself. This is particularly advantageous in tight server housings with little space available. The position of the Low Profile ES L connector can also be easily adjusted or changed later on in this way.VariantsThe Low Profile ES L connector is available in either brilliant chrome or matt black. A special procedure binds the outer coating firmly to the surface, improving the longevity of the intense colour and preventing any chipping or peeling of the coating. Every connector has the Alphacool logo, which along with their distinctive shape makes them unmistakable! Replacement O-rings in three different colours are included. Technical dataMaterialbrassL x W x H31 x 23,5 x 18,5mmThreads1x G1/4" OT | 1x G1/4" ITThread lengthsOT 3,5mm, IT 5mmPossible rotation360°Version90° angledWeight65gColorchrome

The Low Profile ES L-connector from Alphacool's ENTERPRISE SOLUTIONS series with 1 G1/4" male thread and 1 G1/4" female thread offers the possibility to connect components like GPU and CPU coolers, reservoirs or radiators into a water circuit even in the tightest server case.UseThe Low Profile ES L-connector can be rotated 360°. Compared to Alphacool's conventional L-connectors, rotation is not made possible by turning the connector itself, but by a recessed, freely rotatable plug with a screw slot on the threaded opposite side of the connector. With the help of a screwdriver or the plug-in tool from Alphacool, the integration of water cooling elements is simplified, as the connector itself no longer needs to be rotated. The positioning of the connector is done using the adjustment options on the plug itself. This is particularly advantageous in tight server housings with little space available. The position of the Low Profile ES L connector can also be easily adjusted or changed later on in this way.VariantsThe Low Profile ES L connector is available in either brilliant chrome or matt black. A special procedure binds the outer coating firmly to the surface, improving the longevity of the intense colour and preventing any chipping or peeling of the coating. Every connector has the Alphacool logo, which along with their distinctive shape makes them unmistakable! Replacement O-rings in three different colours are included. Technical dataMaterialbrassL x W x H31 x 23,5 x 18,5mmThreads1x G1/4" OT | 1x G1/4" ITThread lengthsOT 3,5mm, IT 5mmPossible rotation360°Version90° angledWeight65gColorblack

The Alphacool M3x6 flat head Phillips screws can be used as spare parts.

The Alphacool M4x6 flat head Phillips screws can be used as spare parts.

The Alphacool NexXxoS GPX Pro backplate for the Alphacool GPX Pro Solo GPU cooler. The backplate serves to stabilise and evenly distribute the contact pressure. In combination with a suitable optional available heat conduction pad, the bending of the PCB due to the back pressure can be prevented. The cooling capacity can also be increased in combination with a suitable heat conducting pad. The fine cooling fins on the back of the backplate contribute to this.

This G1/4” thread extension is primarily meant as a replacement or addition to the Alphacool GPX coolers. However, it can also be used for many other purposes. Scope of Delivery: Alphacool NexXxos GPX thread extension 73mm - Deep Black

Kompakter 240 mm Radiator für Wasserkühlungen, aus Kupfer, hohe Finnendichte, für besonders kleine Custom-Loops, für Hardware aus dem Mittelklassensegment

Kompakter 120 mm Radiator für Wasserkühlungen, aus Kupfer, hohe Finnendichte, für besonders kleine Custom-Loops, für Hardware aus dem Einsteigersegment

Kompakter 140 mm Radiator für Wasserkühlungen, aus Kupfer, hohe Finnendichte, für besonders kleine Custom-Loops, für Hardware aus dem Einsteigersegment

Kompakter 360 mm Radiator für Wasserkühlungen, aus Kupfer, hohe Finnendichte, für besonders kleine Custom-Loops, für Hardware aus dem High-End-Segment

Compact 120 mm radiator for water cooling, made of copper, high fin density, for small custom loops

240 mm radiator for custom water cooling Copper radiator with high fin density for optimal heat dissipation Provides enough performance for high-end hardware Four G1/4-inch threads for connecting the loop An additional G1/4-inch thread for filling and draining Very easy installation Alphacool NexXxoS HPE-30 Radiator: Efficient cooling performance for custom water cooling The Alphacool NexXxoS HPE-30 Radiator, with its 240 mm size, is your ideal solution for a custom water cooling setup. The high fin density with 18 FPI allows for maximum airflow through thin copper fins, ensuring very efficient heat transfer. The radiator’s minimalist design allows it to visually integrate into almost any build. Connection to the water cooling system is via four G1/4-inch fittings. An additional G1/4-inch port acts as a fill/drain point, making filling and draining your custom loop as easy as possible.

480 mm großer Radiator für Wasserkühlungen, für High-End-Hardware, aus Kupfer, hohe Finnendichte

240 mm großer Radiator für Wasserkühlungen, aus Kupfer, hohe Finnendichte

For more than a decade, Alphacool has dominated the market with its Full Copper radiator series. Our extensive portfolio of radiator variants is unique worldwide, just like our manufacturing process, which enables us to craft all water-bearing parts and cooling fins from pure copper. Thanks to their exceptional performance, these radiators can effortlessly dissipate even extremely high waste heat, making them indispensable in many sectors of the cooling industry.The next step in evolution: HPE Full Copper Radiator!The Full Copper HPE Radiator uses the same materials as the previous NexXxoS models but takes a technical step forward. With a denser internal structure, the number of water channels and copper fins has been increased. This design ensures a larger water volume is in direct contact with the cooling fins, significantly enhancing heat transfer. The increased number of fin rows and their shortening also results in a much more efficient utilization of the cooling surface. Comparison tests with the conventional NexXxoS radiator have demonstrated that the HPE radiator can achieve a performance improvement of 4.5K. At higher ambient temperatures and fan speeds, the performance gap between the HPE and standard NexXxoS radiators increases progressively, with possible performance gains of up to 6K.Connection options & mountingThe HPE radiator features two IN or OUT connections with G1/4" threads in the pre-chamber area. On the opposite side, there is a fill or drain port for filling and draining the water circuit. The radiator comes with all necessary screws for case and fan installation. Additional screws are typically not required.Safety firstThe HPE radiator is equipped with special protective plates beneath all mounting holes to prevent screws from being inserted too deeply. This ensures the cooling fins and water channels underneath are protected from damage.Patented screw plugsAll HPE radiators use Alphacool's patented screw plugs. Protruding screw plugs often prevent the radiator from being installed flush. Alphacool's screw plugs are fully recessed into the radiator, flush with its surface, allowing for easy and seamless installation in the case. Technical dataDimensions (L x W x H)314.5 x 144 x 30mm (+/- 3%)Quantity of cooling channels14Material cooling fins, pre-chambers & channelscopperMaterial threadsbrassMaterial outer housingstainless steelThreads4x G1/4" IN/OUT & 1x Fill-/Drainport G1/4" (max. 5mm thread length)Possible fan size140mmPossible fan assembly2x one-sided / 4x both-sidedThread size fan mountingM3Pressure tested0.8 BarMaximum working temperature60°CFin density18 FPIWeight720gColorwhiteWarranty: 10 years???? Warranty Terms

360 mm großer Radiator für Wasserkühlungen, für High-End-Hardware, aus Kupfer, hohe Finnendichte

560 mm großer Radiator für Wasserkühlungen, für High-End-Hardware, aus Kupfer, hohe Finnendichte

360-mm-Radiator für Wasserkühlungen, aus Kupfer, hohe Finnendichte, für High-End-Hardware

480-mm-Radiator für Wasserkühlungen, aus Kupfer, hohe Finnendichte, für High-End-Hardware

Alphacool is uncompromising in its choice of materials and is the only manufacturer in the world that uses only copper for all water-bearing parts in the radiator. The pre-chambers, cooling fins and cooling channels are made of pure copper. Only the fitting threads (made of brass) and the outer casing of the radiator (made of sheet steel) are made of other materials.HPE = High PerformanceThe HPE radiators are based on the NexXxoS series. But what is new? The HPE variant has additional cooling channels and a very high fin density. Due to the technical design, the cooling capacity increases significantly without restricting the water flow within the radiator. If the radiator is equipped with fans on both sides in push/pull operation, it is possible to achieve a significant temperature reduction compared to standard radiators.Powerful cooling performanceTo maximise the performance of the radiator, Alphacool reaches deep into its bag of tricks and uses pure copper for the cooling fins, cooling channels and pre-chambers. Due to the high thermal conductivity of 400 W/mK (in comparison: aluminium 236 W/mK). The high fin density of the radiator with a fin spacing of 16 FPI enables an optimal flow of air. All cooling fins are additionally equipped with small flaps. These are tiny wings that direct the airflow in the desired direction and ensure controlled air turbulence. This increases the cooling capacity and minimises the possible noise created by airflow.Connection options & mountingThe NexXxoS HPE radiators each have an IN & OUT connection with G1/4" thread. All screws for mounting the fans are included with the radiator. Additional screws are usually not required.Safety firstThe NexXxoS HPE radiator has special protective plates placed under all mounting holes to prevent the screws from being screwed in too deeply. This protects the cooling fins and water channels underneath from damage. Technical data radiatorL x W x H286 x 80 x 42 mm (+/- 3% tolerance in the range of the prechamber)Quantity of cooling channels16Material cooling fins, pre-chambers & channelscopperMaterial threadsbrassMaterial outer housingstainless steelThreads2x G1/4" IN/OUT (max. 5mm thread length)Possible fan size80mmPossible fan assembly3x one-sided / 6x both-sidedThread size fan mountingM3Pressure tested0,8 BarMaximum working temperature60°CFin density16 FPIWeight630gColorblackWarranty: 10 years???? Warranty Terms

Kompakter 120 mm Radiator für Wasserkühlungen, aus Kupfer, hohe Finnendichte, für kleine Custom-Loops

Kompakter 140-mm-Radiator für Wasserkühlungen, aus Kupfer, hohe Finnendichte, für kleine Custom-Loops

240-mm-Radiator für Wasserkühlungen, aus Kupfer, hohe Finnendichte, für Mittelklassenhardware

For more than a decade, Alphacool has dominated the market with its Full Copper radiator series. Our extensive portfolio of radiator variants is unique worldwide, just like our manufacturing process, which enables us to craft all water-bearing parts and cooling fins from pure copper. Thanks to their exceptional performance, these radiators can effortlessly dissipate even extremely high waste heat, making them indispensable in many sectors of the cooling industry.The next step in evolution: HPE Full Copper Radiator!The Full Copper HPE Radiator uses the same materials as the previous NexXxoS models but takes a technical step forward. With a denser internal structure, the number of water channels and copper fins has been increased. This design ensures a larger water volume is in direct contact with the cooling fins, significantly enhancing heat transfer. The increased number of fin rows and their shortening also results in a much more efficient utilization of the cooling surface. Comparison tests with the conventional NexXxoS radiator have demonstrated that the HPE radiator can achieve a performance improvement of 4.5K. At higher ambient temperatures and fan speeds, the performance gap between the HPE and standard NexXxoS radiators increases progressively, with possible performance gains of up to 6K.Connection options & mountingThe HPE radiator features two IN or OUT connections with G1/4" threads in the pre-chamber area. On the opposite side, there is a fill or drain port for filling and draining the water circuit. The radiator comes with all necessary screws for case and fan installation. Additional screws are typically not required.Safety firstThe HPE radiator is equipped with special protective plates beneath all mounting holes to prevent screws from being inserted too deeply. This ensures the cooling fins and water channels underneath are protected from damage.Patented screw plugsAll HPE radiators use Alphacool's patented screw plugs. Protruding screw plugs often prevent the radiator from being installed flush. Alphacool's screw plugs are fully recessed into the radiator, flush with its surface, allowing for easy and seamless installation in the case. Technical dataDimensions (L x W x H)314.5 x 144 x 45mm (+/- 3%)Quantity of cooling channels28Material cooling fins, pre-chambers & channelscopperMaterial threadsbrassMaterial outer housingstainless steelThreads4x G1/4" IN/OUT & 1x Fill-/Drainport G1/4" (max. 5mm thread length)Possible fan size140mmPossible fan assembly2x one-sided / 4x both-sidedThread size fan mountingM3Pressure tested0.8 BarMaximum working temperature60°CFin density16 FPIWeight1130gColorwhiteWarranty: 10 years???? Warranty Terms

Alphacool is uncompromising in its choice of materials and is the only manufacturer in the world that uses only copper for all water-bearing parts in the radiator. The pre-chambers, cooling fins and cooling channels are made of pure copper. Only the fitting threads (made of brass) and the outer casing of the radiator (made of sheet steel) are made of other materials.HPE = High PerformanceThe HPE radiators are based on the NexXxoS series. But what is new? The HPE variant has additional cooling channels and a very high fin density. Due to the technical design, the cooling capacity increases significantly without restricting the water flow within the radiator. If the radiator is equipped with fans on both sides in push/pull operation, it is possible to achieve a significant temperature reduction compared to standard radiators.X-Flow instead of U-FlowThe water flow in classic PC radiators is U-shaped. This means that the water inlet and outlet are on the same side on the radiator. This has certain advantages in the normal PC, however, it is difficult to set up a reasonable cooling loop like this in an extremely flat server. Due to the X-Flow technology, the input and output are located on the opposite sides. This makes it very easy to create a loop in the server rack. For example, you could go out from one side, directly into a CPU, then into one or more graphics cards and the pump, then back to the radiator on the other side.Powerful cooling performanceTo maximise the performance of the radiator, Alphacool reaches deep into its bag of tricks and uses pure copper for the cooling fins, cooling channels and pre-chambers. Due to the high thermal conductivity of 400 W/mK (in comparison: aluminium 236 W/mK). The high fin density of the radiator with a fin spacing of 15 FPI enables an optimal flow of air. All cooling fins are additionally equipped with small flaps. These are tiny wings that direct the airflow in the desired direction and ensure controlled air turbulence. This increases the cooling capacity and minimises the possible noise created by airflow.Connection options & mountingThe NexXxoS HPE radiators each have three IN or OUT connections with G1/4" threads. All screws for mounting in the case and for mounting the fans are included with the radiator. Additional screws are not usually required.Safety firstThe NexXxoS HPE radiator has special protective plates placed under all mounting holes to prevent the screws from being screwed in too deeply. This protects the cooling fins and water channels underneath from damage.Patented screw plugsAll NexXxoS HPE X-Flow radiators use Alphacool's patented stop fittings. Anyone who has mounted a radiator on the front or in the roof of a case is familiar with the fact that protruding stop fittings can stop the radiator from sitting flush. With the patented stop fittings, Alphacool offers an excellent solution. The stop fittings are completely recessed in the radiator and sit flush with its surface. This means that nothing stands in the way of a clean installation. Of course, the radiators also look much more elegant with the flat stop fittings. Technical dataL x W x H326 x 60 x 40 mm (+/- 3% tolerance in the range of the prechamber)Quantity of cooling channels9Material cooling fins, channels & prechambercopperMaterial outer housingsteelFins per Inch15Cooling channels4Threads6x G1/4Thread size fan mountingM3Fan size40 mmFan slots7 one-sided / 14 double-sidedPressure tested0,8 BarMax working temperature60 °CWeight577 gColorBlackWarranty: 10 years???? Warranty Terms

Alphacool is uncompromising in its choice of materials and is the only manufacturer in the world that uses only copper for all water-bearing parts in the radiator. The pre-chambers, cooling fins and cooling channels are made of pure copper. Only the fitting threads (made of brass) and the outer casing of the radiator (made of sheet steel) are made of other materials.HPE = High PerformanceThe HPE radiators are based on the NexXxoS series. But what is new? The HPE variant has additional cooling channels and a very high fin density. Due to the technical design, the cooling capacity increases significantly without restricting the water flow within the radiator. If the radiator is equipped with fans on both sides in push/pull operation, it is possible to achieve a significant temperature reduction compared to standard radiators.X-Flow instead of U-FlowThe water flow in classic PC radiators is U-shaped. This means that the water inlet and outlet are on the same side on the radiator. This has certain advantages in the normal PC, however, it is difficult to set up a reasonable cooling loop like this in an extremely flat server. Due to the X-Flow technology, the input and output are located on the opposite sides. This makes it very easy to create a loop in the server rack. For example, you could go out from one side, directly into a CPU, then into one or more graphics cards and the pump, then back to the radiator on the other side.Powerful cooling performanceTo maximise the performance of the radiator, Alphacool reaches deep into its bag of tricks and uses pure copper for the cooling fins, cooling channels and pre-chambers. Due to the high thermal conductivity of 400 W/mK (in comparison: aluminium 236 W/mK). The high fin density of the radiator with a fin spacing of 15 FPI enables an optimal flow of air. All cooling fins are additionally equipped with small flaps. These are tiny wings that direct the airflow in the desired direction and ensure controlled air turbulence. This increases the cooling capacity and minimises the possible noise created by airflow.Connection options & mountingThe NexXxoS HPE radiators each have three IN or OUT connections with G1/4" threads. All screws for mounting in the case and for mounting the fans are included with the radiator. Additional screws are not usually required.Safety firstThe NexXxoS HPE radiator has special protective plates placed under all mounting holes to prevent the screws from being screwed in too deeply. This protects the cooling fins and water channels underneath from damage.Patented screw plugsAll NexXxoS HPE X-Flow radiators use Alphacool's patented stop fittings. Anyone who has mounted a radiator on the front or in the roof of a case is familiar with the fact that protruding stop fittings can stop the radiator from sitting flush. With the patented stop fittings, Alphacool offers an excellent solution. The stop fittings are completely recessed in the radiator and sit flush with its surface. This means that nothing stands in the way of a clean installation. Of course, the radiators also look much more elegant with the flat stop fittings. Technical dataL x W x H367 x 80 x 60 mm (+/- 3% tolerance in the range of the prechamber)Quantity of cooling channels24Material cooling fins, pre-chambers & channelscopperMaterial threadsbrassMaterial outer housingstainless steelThreads6x G1/4" IN/OUT (max. 5mm thread length)Possible fan size80mmPossible fan assembly4x one-sided / 8x both-sidedThread size fan mountingM3Pressure tested0,8 BarMaximum working temperature60°CFin density15 FPIWeight1003gColorblackWarranty: 10 years???? Warranty Terms

120-mm-Radiator für Wasserkühlungen, aus Kupfer, für Custom-Loops

Hochwertiger Kupfer-Radiator von Alphacool, mit extremer Kühlfläche durch 86 mm Dicke, für 3x 120-mm-Lüfter

The new Alphacool NexXxos radiators, a name that stands for experience and quality has come to bring a fresh breeze to the radiator market.Every user of a water cooling system needs a radiator and everyone has different requirements towards the heat exchanger. Of course the customer always demands the best in its class. The Alphacool NexXxos radiators have come to compete with and to beat the best in their class and to be the best radiator in all sizes. No more endless choices without a clear class leader, the Alphacool NexXxos is the one tool for all your needs!Alphacool has been the company to introduce new developments and improvements in the radiator and water cooling sector generally many times over the last years.Following this tradition, the new NexXxos radiators are the first to truly deserve the “Full copper” attribute. All main parts, not only the fins and channels, but the chambers are also made from copper. This brings an improvement in performance where other radiators are left without a chance. The material already gives an advantage over the competition and the inner structure is up to par with the competition. Separated chambers give the coolant a clear direction, allowing high flow rates which improve the performance of the whole cooling loop.Flat chambers on the heat exchanger increase mounting flexibility thanks to the reduced overall length.Versatile and easy mounting is one of the main points, on which the research and development department at Alphacool focused. The chamber offers three possibilities for fitting installation on both inlet and outlet (not on the NexXos ST30). Less angled fittings are needed, improving flow rates and offering more mounting possibilities. Hence the radiator can even be installed in tight enclosures, where otherwise internal installation is not a possibility. A 1/4" screw plug allows easy de-aeration of the radiator (on all UT60 and NexXxos Monsta) and hassle-free vertical installation of the heat exchanger. The threaded opening can even be used for filling, e.g. in combination with a Fillport.Versatility is the essence of the new NexXxos series! The radiators are available in different versions to be used with 120mm, 140mm or 180mm fans and are available in different thicknesses. The choice of 30mm, 45mm and 60mm offers the perfect radiator for every purpose. Even mounting and installation of fans and radiator grills is easy and versatile with these radiators: The M3 threads are standard in the radiator sector and available in all lengths at an affordable price.Even the dreaded insertion of a screw too far into the radiator does not result in expensive damage. Unlike other radiators, the NexXxos series is equipped with an internal protective ledge which stops the screw before it damages the fins.Fin spacing is always an important factor in radiator design. The new series from Alphacool has a fin design which allows it to perform extremely well even with slow-spinning and medium-speed fans. This is not only pleasant thanks to the fact that it avoids unnecessary noise; it also means that the choice of fans that can be used with these radiators is not restricted.These radiators are the result of experience and powerful performance meeting future-oriented design and well-thought through solutions.Alphacool NexXxos radiators: The one tool for all your cooling needs! technical DataCooling channelsCopperQuantity of cooling channels12Fan threadM3Number of fans3Connection6x G1/4"SlatsCopperColorwhiteThickness69 - 100mmFan size120mmHousingSteelManufacturerAlphacoolPressure tested0,8 barFins per inch10Dimensions (L x W x H)400 x 124 x 86mm
