All-in-one liquid CPU cooler, 80.95 CFM, 2 slot ROG 120mm ARGB fan, Aura Sync RGB, LGA1700/1200 support Seventh Gen Asetek pump delivers exceptional cooling and minimal noise with an operating range starting at 840 rpm.ROG-designed addressable RGB radiator fan for optimized airflow and static pressure 81 CFMReinforced, sleeved tubing for increased durabilityIndividually addressable A-RGB and NCVM coating pump cover accentuates the sleek, modern aesthetics Styled to complement ROG motherboards, at the center stage of your buildIntel® LGA 1700, 1200, 1150, 1151, 1152, 1155, 1156, 2011, 2011-3, 2066 and AMD AM4/AM5/TR4 support
Long Service LifeThe Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service lifeInnovative Design Enables Quiet and Efficient VentilationThe innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.Ideal Temperature ControlThe temperature sensor is on a 40 cm cable and can be placed in the warm areas of your computer. This assures temperatures no higher than 38 °C anywhere in the case and supports the cooling of your CPU or graphics card. On the other side this fan keeps the noise level absolutely minimal and only increases the speed if necessary.SobilikArvuti korpusTüüpVentilaatorVentilaatori läbimõõt9,2 cmToetatud protsessoripesadEi ole toetatudÜhilduvad protsessoriseeriadEi ole toetatudPöörlemiskiirus (min)400 RPMPöörlemiskiirus (max)1800 RPMMüratase0,4 soneMaksimaalne õhuvool43 cfmÕhuvool73,1 m³/hLaagri tüüpLiuglaagerVentilaatorite arv1 ventilaator(id)Toote värvMust, ValgeMaterjalPolükarbonaatKaabli pikkus0,4 mRoHS-vastavusJahPinge12Nimivool0,16 ALaius92 mmSügavus25 mmKõrgus92 mmKaal84 gPakendi laius96 mmPakendi sügavus27 mmPakendi kõrgus96 mmPakendi kaal100 gKinnitusaugu struktuur (l x s)82,5 x 82,5 mmVentilaatori konnektor3-soonelineKaasas kruvidJah

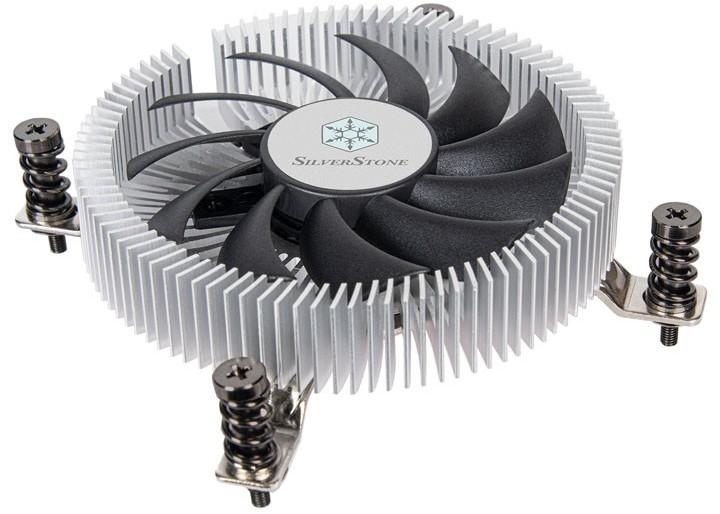

- Supports Intel LGA1150/1151/1155/1156 processors- Designed for low-profile systems at 48mm tall- Large custom 92mm PWM fan for excellent cooling and low noise- True solid copper contact base enables heat dissipation up to 95W- Copper center and base with extruded aluminum fins- Easy to installSilverStone Technology’s Nitrogon NT08-115X is a low-profile CPU cooler designed for space limited applications that utilizes LGA1150/1151/1155/1156 platforms. It has a true, solid copper center and base with extruded aluminum fins for superior thermal conductivity for up to 95W, a figure that rivals many larger and original coolers. The custom 92mm PWM fan was designed with fan blades to achieve the highest air pressure possible while maintaining an acoustic profile that is rare for cooler of this size. At a total height of 48mm tall, the NT08-115X is an excellent upgrade for any low-profile system on LGA1150/1151/1155/1156 platforms.SobilikProtsessorTüüpVentilaatorVentilaatori läbimõõt9,2 cmToetatud protsessoripesadLGA 1150 (Socket H3)Pöörlemiskiirus (min)1200 RPMPöörlemiskiirus (max)3500 RPMMüratase (aeglane kiirus)21,56 dBMüratase (suur kiirus)61,88 dBMinimaalne õhuvool10,34 cfmMaksimaalne õhuvool47 cfmMinimaalne õhusurve0,7 mmH2OMaksimaalne õhusurve5,94 mmH2OImpulsi-laiuse modulatsiooni (PWM) tugiJahVentilaatorite arv1 ventilaator(id)Jahutusvõimsus (TDP)95 WToote värvMust, VaskMaterjalVaskVõimsustarve (tüüpiline)95 WLaius101 mmSügavus101 mmKõrgus48 mmKaal213 gVentilaatori mõõdud (laius x sügavus x kõrgus)92 x 92 x 25 mmVärvJahMüratase61,88 dB
EK-XTOP DDC 3.2 PWM Elite - Acetal (incl. pump) is a High-Performance water cooling pump. The core of the unit is the market-proven EK-DDC 3.2 PWM water pump (4-pin PWM FAN header). This unit offers increased hydraulic performance (up to 15 %) compared to original factory top.PWM control allows for automatic pump speed regulation depending on your CPU temperature. Full performance on demand or whisper quiet operation in idle mode!This top features two G1/4 threaded ports of which one is an inlet on top and one is an outlet on the side of the unit. EK recommends EK-ACF series compression fittings.Despite a remarkably small footprint of 2.4" square, the pump features an astounding 7m of head to provide superior flow rates in today's most complex liquid cooled systems. The pump is also a high reliability, high pressure industrial pump, featuring a 50,000 hour MTBF (5 year lifetime).Top is made of quality POM Acetal material. The pump is nested inside the EK-DDC Heatsink Housing. This vastly improves the cooling performance of the motor and electronics and thus prolongs the lifespan of the water pump. Optimal heat transfer is ensured by the use of thermal pad inside the housing. Due to it's metallic construction and finned design EK-DDC Heatsink Housing amplifies the effect of airflow therefore placing the water pump in front of any fan or radiator will dramatically improve the cooling performance.EK-DDC Heatsink Housing is made from cast ZAMAK (zinc, aluminum, magnesium, copper) alloy and features features glossy black paint finish.This product also features vibration dampening rubber mounting system which effectively de-couples the water pump from the rest of the computer chassis.EK-Cable Pump testing adapter is recommended to be used for testing purposes while leak-testing your loop and is intended to be connected directly to PSU, without the need for powering up the entire system.EK-XTOP DDC 3.2 PWM Elite - Acetal can also be upgraded with either EK-UNI Pump Bracket (120mm FAN) - Regular or Vertical which allow installation of the product in any position with 120mm type fan hole pattern.Toote värvMustMaterjalAlumiiniumLaius63 mmSügavus68 mmKõrgus55 mm
If you want to have the pump with the highest possible throughput for your water cooling system, you should use the Laing D5. But it's not perfect in one respect: the non-standard connections. Like other manufacturers, Bitspower also offers alternative D5 cover. The cover, milled in black from a block of acetal plastic, has five G1/4" threaded holes and there are various holes for individual mounting. The scope of delivery includes the necessary screws and a sealing ring. Technical Data: Dimensions: 62 x 62 x 43 mm (W x H x D) Material: Acetal Color: Black Thread: 5x G1/4" Compatibility: Laing D5, Swiftech MCP 655
Dimensions: 140 x 140 x 25,4 mm (W x H x D) Weight: ca. 159,3 g Material: Plastic Colour: Grey (frame), black (rotor) Port: 4-Pin (PWM) RPM: 200~1.000 RPM Volume: max. 19,5 dB(A) Airflow Volume: max. 71,3 m³/h Static Pressure: max. 1,06 mm H2O Voltage: 12 V Bundle: 1x QF140 Fan 1x Molex Adapter 4x Standard Fan Screws 4x Rubber Decouplers
Dimensions: 140 x 140 x 25.4 mm (W x H x D) Weight: approx. 159.3 g Material: Plastic Connection: 4-Pin (PWM) Speed: 200~1,000 RPM Volume: max. 19.5 dB (A) Delivery Volume: max. 71.3 m³/h Static Pressure: max. 1.06 mm H2O Voltage: 12 V Bundle: 1x QF140 Fan 1x Molex Adapter 4x Standard Fan Screws 4x Rubber Decoupler
be quiet! Pure Wings 2 140mm PWM high-speed. Sobilik: Arvuti korpus, Tüüp: Ventilaator, Ventilaatori läbimõõt: 14 cm. Kaabli pikkus: 0,46 m, Sertifikaat: CE, TÜV, UL. Toiteallikas: 6 W, Pinge: 5 - 12 V, Lubatud voolupinge: 12 V. ...
Technical Data: Material: Aluminium Color: Black Compatibility: EK Water Blocks EK-FC RTX 2080 +Ti Classic RGB - Nickel + Acryl Scope of Delivery: 1x EK Water Blocks EK-FC RTX 2080 +Ti Backplate Classic - Black
All new Flat (FLT) series EK-Quantum Volume FLT reservoir units! The new Volume reservoirs are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation. Each reservoir is featuring standard 120mm fan mounting holes for maximum flexibility during the installation. The reservoir is equipped with a total of four G1/4“ ports so that users can choose the most optimal setup for their liquid cooling loops. EK-Quantum Volume FLT reservoirs are available in three different sizes, 120mm, 240mm, and 360mm! The new flat-shaped reservoirs are to revolutionize the way you were thinking about reservoirs and loop building. Since 120mm fan mounting patterns are the most dominant mounting options inside PC cases these days, these new EK-Quantum Volume FLT reservoirs will allow greater flexibility for installation since they don't require drilling of new mounting holes on your case. The reservoir is equipped with a total of four industry-standard G1/4" ports, which can be, based on the orientation of the unit, used as inlet and outlet ports. The reservoir is manufactured of premium quality acrylic material, machined to perfection, while the sealing is performed by a quality EPDM o-ring. Alongside the reservoir is a black anodized aluminum cover under which the Addressable D-RGB LED strip is placed. Proper LED implementation is one of the main focus points of EK so that there are as few visible "LED hotspots" as possible. Technical specifications: - Size (HxWxT): 240x120x53.5mm (with mounting system) - Capacity: ~225ml - D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground) Enclosed: - EK-Quantum Volume FLT 240 D-RGB - Mounting mechanism with all necessary screws for 120mm fan mounting - Pair of EK reservoir holders with mounting screws - 2 × G1/4 Plugs - 1 × Allen key for reservoir holders Made in Slovenia - EU!
Technical Data: Material: Nickel-Plated Brass Color: Black Thread: G1/4" (male and female) Thread Length: 4,5 mm (male), 6 mm (female) Outer Diameter: 23 mm Installed Height: 31,5 mm
Black & red 92 mm case fan with PWM (Pulse Width Modulation). Cool your PC components with this Xilence fan. It offers you an extremely good price-performance ratio, and cools your PC efficiently at a low noise level.
The Xilence Performance C PWM fan series excels with an extraordinary price-performance ratio and a very good proficiency combined with a lo noise development. The black and red case fans are equipped with PWM function as well as high-quality hydro bearings and are available in 3 different sizes. Product Features Optimal performance in every situation Hydro bearing fan Airflow-optimized rotor blades PWM function Technical Datas Fan Dimension: 120 x 120 x 25mm Connector Type: 4 PIN Sound level: 28 db(A) PWM: yes Fan Bearing: hydro bearing Air Flow: 57,9 CFM Fan Speed: 1.500 RPM ± 10% Data Sheet
Original part number TIM TUBE S05 Product name QOLTEC Thermal paste TimTube S05 Producer Qoltec Class of product Cooling accessories More info Description
EK-UNI Pump Bracket (140mm FAN) Vertical is a horizontal and vertical mounting adapter for pump and combo unit installation. It is compatible with EK-XTOP Revo D5, EK-XTOP Revo DDC, EK-XTOP SPC pumps and EK-XRES Revo D5, EK-Xres DDC, EK-XRES SPC combo units. The bracket mounts to any 140mm fan hole pattern. This product is compatible with the following EK products: EK-XRES Revo D5 series EK-XTOP Revo D5 series EK-XRES DDC series EK-XTOP DDC series EK-XRES SPC series EK-XTOP SPC series Scope of Delivery EK-UNI Pump Bracket (140mm Fan) Vertical 5x polyamide washer M4 5x screws M4x6 DIN7984 5x nut M4 Allen key 2,5
Dimensions: 140 x 168,3 x 142,4 mm (W x H x D) Colour: Silver, black Heatpipes: 7x 6 mm TDP: 250 W + Fans: 2x 140 mm XF140 Colour: Black Connector: 4-Pin-PWM RPM: 700 - 1.300 RPM Volume: 23 dB (A) Flow Volume: max. 152 m³/h Static Pressure: max. 1.44 mm H2O Compatibility: Intel sockets 775,1150,1151,1155,1156,1366,1366,2011,2011-V3 AMD sockets FM1, FM2, FM2+, AM2, AM2+, AM3, AM3+, AM4 (with extension kit) Maximum RAM height: 30 to 35 mm
Warranty: 24 month(s) Producer product name: XFAN 120 Fan diameter: 12 cm Rated current: 0.07 A Airflow: 44.71CFM Power requirements: 12V DC Bearing technology: Hydro Noise level (high speed): 26 dB Suitable for: Computer case Power consumption (typical): 0.84 W Rotational speed: 1300 RPM Gross weight: 0.2 kg Type: Fan Weight: 180 g Net weight: 0.16 kg Colour of product: Black Other features: 3 Pin /2 Pin conection 12V High quality black material fan structure.Low speed RPM to ensure quiet operation.Computer case cooling.Power supply cooling. Dimensions (WxDxH): 120X120X25mm mm Fan: 1300±10%RPM 44.71CFM 26dB(A) Height: 120X120X25mm mm Depth: 120X120X25mm mm Width: 120X120X25mm mm Gross depth (mm): 220 mm Gross width (mm): 160 mm Gross height (mm): 30 mm Packing quantity: 64 pc(s) Gross depth master carton: 410 mm Gross width master carton: 400 mm Gross height master carton: 352 mm Net weight master carton: 10.24 kg Tare weight master carton: 3.56 kg Volume (m3): 0.001056 m³ Tare weight (kg): 0.04 kg
To connect the individual components of the water cooling, the choice of the correct connections and their sufficient number is essential. Otherwise, installation will quickly become a frustrating experience if assembly fails on the wrong or too few connectors and is delayed due to this. Bitspower offers a comprehensive product range that offers the right solution for every requirement - whether adapters, direct hose connections, brackets or distributors. The design is solid and has a sealing ring. Thus, the connections remain tight and ensure high long-term durability. This is a shiny silver, nickel plated, straight adapter with two G1 / 4-inch external threads. The special feature: The length of the adapter can be flexibly adjusted between 22 and 31 mm (measured without thread). For this purpose, only one nut is loosened, one side pulled out as desired and then fixed again with the union nut. Technical details:Material: brass, nickel platedConnections: male thread: 2x G1 / 4 inchLength: 22 - 31 mm (variable)
